MetraSCAN 3D | Handheld Optical CMM 3D Laser Scanner

Designed for manufacturing and metrology professionals

Insensitive to shop floor vibrations, part movement, and environmental instability, the Metrascan 3D significantly increases the efficiency, reliability, and versatility of measurement processes.

Discover the MetraSCAN 3D

MetraSCAN 3D scanning manufacturing

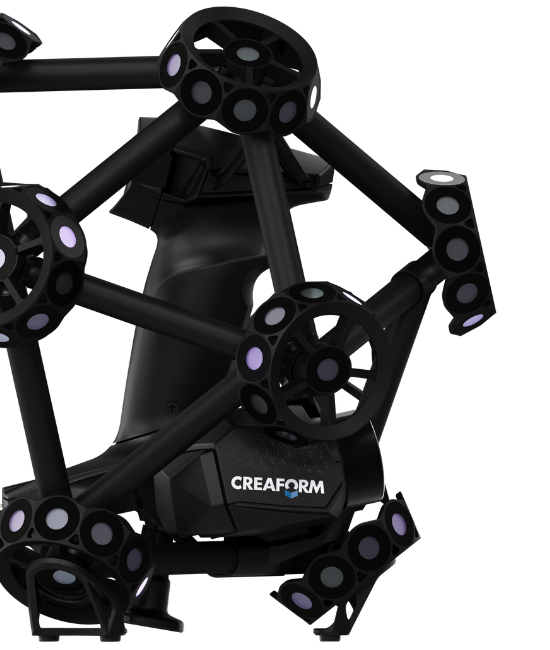

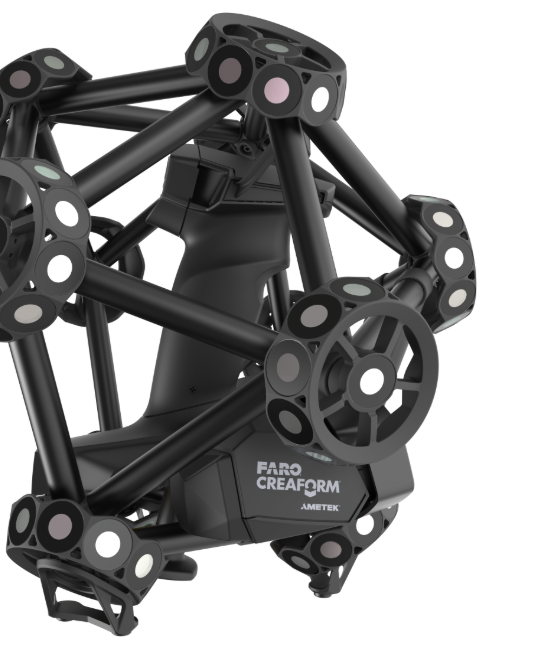

MetraSCAN 3D left side

Speed and accuracy combined with versatility

The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections.

When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.

Accuracy of 0.025mm

Worldwide support

Certified ISO 17025

Patented Technology

Ask an Expert Download brochure

Discover how the MetraSCAN 3D is the ideal tool for quality control

Faster 3D scanning

The MetraSCAN 3D features 30 blue laser lines and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.

High measurement rate
1,800,000 measurements/second

Large scanning area for all types of parts
30 blue laser lines

Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes

360° Magnetic Targets
For quick and easy setups
Optimized visibility for dynamic tracking

Enhanced 3D Scanning Accuracy with Automatic Volume Extension

The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts.

Accuracy
0.025 mm (0.0009 in)

Automatic Volume Extension
0.025mm + 0.015mm/m (0.0009in + 0.00018in/ft)

Reliable acceptance tests
Based on VDI/VDE 2634 Part 3 standard
Based on ISO 10360 standard
ISO/IEC 17025: 2017 accredited laboratory

Shop floor accuracy with dynamic referencing
Measurement accuracy insensitive to environmental instabilities
High resolution
Measures all types of complex and highly detailed parts

Versatile 3D Scanning for Complex Parts and Reflective Surfaces

Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device.
With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

Blue laser technology
Ideal for shiny and reflective surfaces

Large and easily extendable measurement volume
Wider than other portable CMMs
No leapfrog required
Integrated photogrammetry

Optional HandyPROBE
Combination of both 3D scanning and probing
No targets required

New Setup Assistance Tools
Guidance volume display
High-level setup diagnostics

What they say about us?

With the MetraSCAN 3D scanner, we have a dynamic production development process with a common work basis for QC and design/construction. We can now make adjustments to components where we had not previously thought was possible before.

Sebastian Witt
Quality control motorsport

Read the whole story

Field of applications

View all solutions

Product development and design

Launch innovative products to your market faster

Expert MetraSCAN 3D Quality control

Quality control and quality assurance

Reduce costs and ensure the quality your customers expect

Engineer MetraSCAN 3D shiny object

Reverse engineering

Quickly extract dimensional information from existing components to produce new CAD reference models

MetraSCAN 3D product design aerospace

Creaform.OS

The intelligence behind Creaform 3D measurement and scanning solutions

Included with all Creaform 3D measuring and scanning devices, Creaform.OS is a powerful, integrated operating software that ensures seamless hardware-software synergy during acquisition, delivering an unparalleled 3D measurement experience.

Supported Software Modules

Dimensional inspection software for quality control

Part showcasing the Inspection software interface

Software for feature extraction and CAD modeling from 3D scan data

Part showcasing the Scan-to-CAD software interface

Compatible Software

Add-Ons

Discover our portable optical coordinate measuring system

MaxSHOT 3D Optical coordinate measuring system

Discover our arm-free portable probing system

HandyPROBE Portable coordinate measuring machine

The Automation Kit is the ideal solution for enhancing productivity and adapting to evolving quality control challenges while maintaining the full flexibility of handheld 3D scanning devices.

Creaform automation kit for metrascan 3d

Perfect tools for shop-floor environments

Creaform’s portable workstation and C Track shop-floor stand add flexibility, mobility and reliability to Creaform systems across a production plant. Take advantage of this turnkey solution to perform all your inspections.

Portable workstation and C-Track shop floor stand
